TESSERA with ELLO TS
Product Introduction:
Designed with low-poly elements and high-performance experience in mind, the new TESSERA is elaborately engineered in every single detail to be not only visually appealing but versatile. It features a 1.45 inch TFT color display and an all new UI system, with the addition of 5 theme colors for your option. A beast behind the beauty, the TESSERA is capable of firing up to 150 watts and has a maximum of 2A charging for efficient recharging. The TESSERA comes paired with a newly designed ELLO TS atomizer that utilizes HW coils for intense flavor and clouds. For better enjoyment of vaping, all you need is just this TESSERA with ELLO TS kit.
Product Introduction:
Designed with low-poly elements and high-performance experience in mind, the new TESSERA is elaborately engineered in every single detail to be not only visually appealing but versatile. It features a 1.45 inch TFT color display and an all new UI system, with the addition of 5 theme colors for your option. A beast behind the beauty, the TESSERA is capable of firing up to 150 watts and has a maximum of 2A charging for efficient recharging. The TESSERA comes paired with a newly designed ELLO TS atomizer that utilizes HW coils for intense flavor and clouds. For better enjoyment of vaping, all you need is just this TESSERA with ELLO TS kit.
Parameter:
Size: 42mm*30.5mm*123.5mm (2ml version)
42mm*30.5mm*133.0mm (4ml version)
Weight: 215.3g (2ml version) / 217g (4ml version)
E-liquid capacity: 2ml (extendable to 4ml) / 4ml
Battery capacity: 3400mAh
Maximum charging current: 2A
Thread type: 510 thread
Output wattage: 1-150W
Output voltage: 0.5-8V
Output mode: VW/RTC/TC(Ni/Ti/SS/TCR)
Resistance range: 0.05-1.0ohm (TC modes)
0.1-3.0ohm (VW/RTC mode)
Colors: silver, black, red, green, dazzling
42mm*30.5mm*133.0mm (4ml version)
Weight: 215.3g (2ml version) / 217g (4ml version)
E-liquid capacity: 2ml (extendable to 4ml) / 4ml
Battery capacity: 3400mAh
Maximum charging current: 2A
Thread type: 510 thread
Output wattage: 1-150W
Output voltage: 0.5-8V
Output mode: VW/RTC/TC(Ni/Ti/SS/TCR)
Resistance range: 0.05-1.0ohm (TC modes)
0.1-3.0ohm (VW/RTC mode)
Colors: silver, black, red, green, dazzling
Standard configuration:
1×TESSERA
1×HW2 Dual-Cylinder
0.3ohm Head (pre-installed)
1×ELLO TS Atomizer (4ml/2ml version)
1×QC USB Cable
1×HW1 Single-Cylinder 0.2ohm Head
2×User Manuals
Spare Parts
Sleek Looking in Low-poly Design
Designed with low-poly elements in mind, the new TESSERA is elaborately engineered in every single detail to be sleek and visually appealing.
Designed with low-poly elements in mind, the new TESSERA is elaborately engineered in every single detail to be sleek and visually appealing.
A bright 1.45inch TFT Color Display
The TESSERA features a large and bright 1.45-inch TFT color screen that displays all essential information clearly. You’ll see the display without any trouble even under sunshine.
The TESSERA features a large and bright 1.45-inch TFT color screen that displays all essential information clearly. You’ll see the display without any trouble even under sunshine.
All-new UI System with Optional Theme Colors
The TESSERA utilizes an all-new easy-to-go firmware, with the addition of 5 theme colors for UI for your preference.
The TESSERA utilizes an all-new easy-to-go firmware, with the addition of 5 theme colors for UI for your preference.
Not only Your Vape, but also a Clock
Real time clock (RTC) system is applied on the TESSERA, presenting you the time and the date in both power-on and power-off states.
A 150W Beast with Ergonomic Design
Powered by an internal battery, Eleaf TESSERA is capable of firing up to 150 watts. And the design of the hidden fire bar on the side offers a comfortable handling.
Powered by an internal battery, Eleaf TESSERA is capable of firing up to 150 watts. And the design of the hidden fire bar on the side offers a comfortable handling.
Convenient Retractable Top Fill
To fill the ELLO TS tank, you just need to slide the top cap with drip tip back to reveal the fill port.
Easy Cleaning
All parts of the ELLO TS tank can be detached and reassembled, making cleaning work hassle free.
Powerful HW Coils for Intense Flavor and Cloud
The TESSERA with ELLO TS comes with powerful HW coils: HW1 Single-Cylinder 0.2ohm Head and HW2 Dual-Cylinder 0.3ohm
Head, allowing great vaping experience with intense flavor and cloud. It is also compatible with other HW coils.
Head, allowing great vaping experience with intense flavor and cloud. It is also compatible with other HW coils.
Limitless Vaping with Centered 510
With centered 510 pin, Eleaf TESSERA can accept tanks of various diameters. It can handle tanks up to 25mm without any overhang.
With centered 510 pin, Eleaf TESSERA can accept tanks of various diameters. It can handle tanks up to 25mm without any overhang.
Safer Charging with Temperature Protection System
The temperature protection system (ENU) is utilized to highly ensure the safety of charging process.
Quick and Efficient Recharging
With 2A maximum charging current, the TESSERA can be fully recharged much more quickly and efficiently.
Dual Circuit Protection
The circuit protection system has both software and hardware battery protections of over-charging, over-current and over-discharging.
Charging & Upgrading
Charging: simply plug the device in to a computer or a wall adapter to charge.

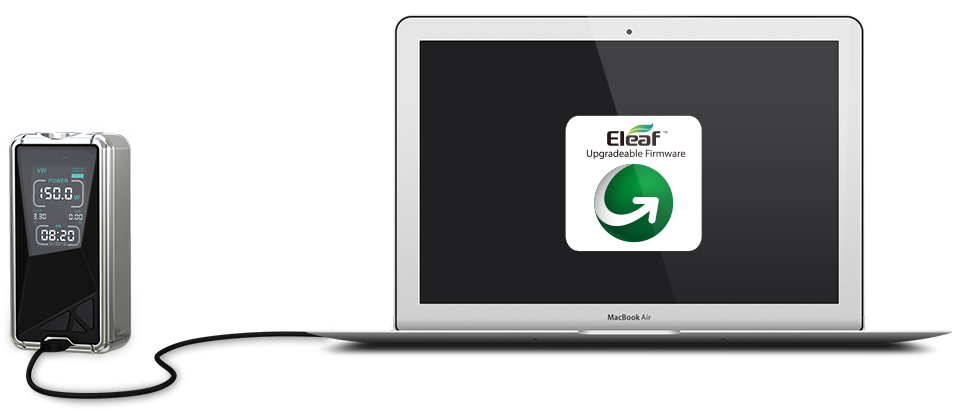

Upgrading: the firmware can be upgraded by connecting the device with a computer through the USB port via a micro USB cable.
Upgrading: the firmware can be upgraded by connecting the device with a computer through the USB port via a micro USB cable.
Original firmware (V1.01)
Reset Function
The TESSERA can be reset in case it could not be powered on after upgraded.
The TESSERA can be reset in case it could not be powered on after upgraded.
