iStick Tria with ELLO S
Product Introduction:
The iStick Tria, a new powerful mod by Eleaf, accepts triple 18650 batteries and is capable of firing up to 300W, allowing a much more massive vapor production than ever. The overall compact profile and stylish visual appeal of the iStick Tria make this powerful vape mod stand out from others. The ELLO S atomizer features retractable top for easy e-liquid filling and comes with HW coils for great vaping experience with enhanced flavor. Having 0.91-inch screen, upgradeable firmware, 2A quick charge and reverse charge capabilities, this full-featured iStick Tria with ELLO S is a must have vaping setup for cloud chasers.
Product Introduction:
The iStick Tria, a new powerful mod by Eleaf, accepts triple 18650 batteries and is capable of firing up to 300W, allowing a much more massive vapor production than ever. The overall compact profile and stylish visual appeal of the iStick Tria make this powerful vape mod stand out from others. The ELLO S atomizer features retractable top for easy e-liquid filling and comes with HW coils for great vaping experience with enhanced flavor. Having 0.91-inch screen, upgradeable firmware, 2A quick charge and reverse charge capabilities, this full-featured iStick Tria with ELLO S is a must have vaping setup for cloud chasers.
Parameter:
Size: 41mm*41mm*114mm
Weight: 177g
Output wattage: 1-300W
E-liquid capacity: 2ml (Extendable to 4ml)
Maximum charging current: 2A
Maximum output current: 50A
Thread type: 510 thread
Battery type: high-rate 18650 battery
(Continuous discharge current should be above 25A)
Output mode: VW/TC(Ni,Ti,SS,TCR-M1,M2,M3)
Resistance range: 0.05-1.5ohm (TC modes)
0.1-3.5ohm (VW mode)
Temperature range: 100－315℃/200－600℉(TC modes)
Weight: 177g
Output wattage: 1-300W
E-liquid capacity: 2ml (Extendable to 4ml)
Maximum charging current: 2A
Maximum output current: 50A
Thread type: 510 thread
Battery type: high-rate 18650 battery
(Continuous discharge current should be above 25A)
Output mode: VW/TC(Ni,Ti,SS,TCR-M1,M2,M3)
Resistance range: 0.05-1.5ohm (TC modes)
0.1-3.5ohm (VW mode)
Temperature range: 100－315℃/200－600℉(TC modes)
Standard configuration:
| 1×iStick Tria (without batteries) 1×ELLO S Atomizer | |
| 1×HW3 Triple-Cylinder 0.2ohm Head 1×QC USB cable | |
| 1×HW4 Quad-Cylinder 0.3ohm Head 2×User Manuals Spare Parts |
Childproof Version Available
Childproof versions for iStick Tria with ELLO (2ml/4ml) are available for your choice. The button should be pushed in when you slide the mouthpiece back to reveal the fill port to refill.
Powerful Output of 300W
Powered by triple 18650 batteries, the iStick Tria is capable of outputting a maximum power of 300W, providing you with a large amount of vapor production.
0.91-Inch Screen with Triple Battery Bars
The iStick Tria comes with a 0.91-inch screen that offers a concise and clear interface with 3 separate battery bars, allowing you to know which battery needs to be charged or exchanged.
Stay Stylish and Modern
The overall compact profile and stylish visual appeal of the iStick Tria make this powerful vape mod stand out from others.
The overall compact profile and stylish visual appeal of the iStick Tria make this powerful vape mod stand out from others.
Easy to Clean
All parts of the ELLO S tank can be detached and reassembled, much more convenient to clean
All parts of the ELLO S tank can be detached and reassembled, much more convenient to clean
Convenient Retractable Top Fill
To fill the ELLO S tank, you just need to slide the top cap with drip tip back to reveal the fill port.
To fill the ELLO S tank, you just need to slide the top cap with drip tip back to reveal the fill port.
2A Maximum Charging Current for Quick Charge
With 2A maximum charging current, the batteries can be fully charged much more quickly.
Battery Balancing Trickle Charge System
A battery balancing trickle charge system is utilized in the iStick Tria to bring 3 batteries to the equal level charge, which also ensures high security in charging.
Powerful HW3 and HW4 Coils
The iStick Tria with ELLO S comes with powerful HW coils: HW3 Triple-Cylinder 0.2ohm Head and HW4 Quad-Cylinder
0.3ohm Head for cloud chasing.
0.3ohm Head for cloud chasing.
Extendable for Larger E-liquid Capacity
To obtain larger e-liquid capacity of 4ml, simply replace the pre-installed glass tube with the other taller one and an extra air pipe that are both provided in the package.
To obtain larger e-liquid capacity of 4ml, simply replace the pre-installed glass tube with the other taller one and an extra air pipe that are both provided in the package.
Preheat Function & Switchable Interfaces
Preheat function allows the device to quickly heat up the coil at a higher wattage, providing you with a nice vaping experience. iStick Tria also has three switchable display interfaces for you to choose from: Puff interface, Second interface, and Current (amp) interface.
Preheat function allows the device to quickly heat up the coil at a higher wattage, providing you with a nice vaping experience. iStick Tria also has three switchable display interfaces for you to choose from: Puff interface, Second interface, and Current (amp) interface.
High Compatibility
The iStick Tria can handle tanks up to 25mm diameter without any overhang.
Dual Circuit Protection
The circuit protection system has both software and hardware battery protections of over-charging, over-current and over-discharging.
Reverse Polarity Protection
Reverse polarity protection is fully achieved by the application of special battery anti reverse circuit in the circuit board.
Reverse Charging Capability
With the Reverse Charging (RC) adapter (optional accessory), the iStick Tria will convert the 510 connection into a USB output for
power bank mode, providing power to your cell phone or other e-cig device.
power bank mode, providing power to your cell phone or other e-cig device.
Functions of Micro USB Port
Charging: The 18650 batteries can be charged in the iStick Tria through the side USB port via wall
adapter or computer or charged with an external battery charger.
adapter or computer or charged with an external battery charger.

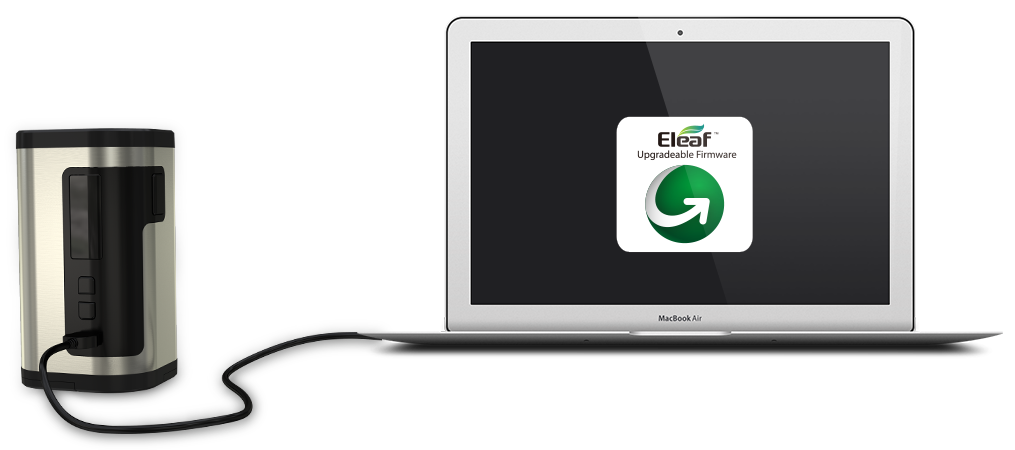

Firmware upgrading: The firmware can be upgraded by connecting the device with a computer through the USB port via a micro USB cable.
Download the file below to put custom logo into your iStick Tria.
