Eleaf Invoke
Product Introduction:
The Eleaf Invoke is a giant step for Eleaf with a centered 510 and larger 1.3-inch display. It features elegantly crafted curves for the most stunning looking and the most comfortable feel in hand ever. A beast behind the beauty, the Eleaf Invoke is capable of delivering a massive output power of 220 watts by dual 18650s. Along with a fresh easy-to-go interface, it handles swiftly. Additional features including battery balancing trickle charge system, 2A quick charge and reverse charge capabilities are also a plus.
Product Introduction:
The Eleaf Invoke is a giant step for Eleaf with a centered 510 and larger 1.3-inch display. It features elegantly crafted curves for the most stunning looking and the most comfortable feel in hand ever. A beast behind the beauty, the Eleaf Invoke is capable of delivering a massive output power of 220 watts by dual 18650s. Along with a fresh easy-to-go interface, it handles swiftly. Additional features including battery balancing trickle charge system, 2A quick charge and reverse charge capabilities are also a plus.
Parameter:

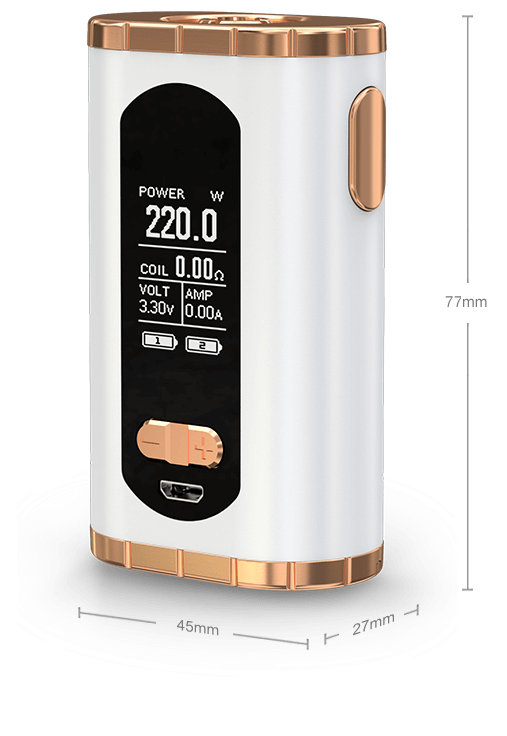

Size: 45mm*27mm*77mm
Weight: 77g
Output wattage: 220W
Maximum charging current: 2A
Maximum output current: 50A
Thread type: 510 thread
Battery type: high-rate 18650 battery
(Continuous discharge current should be above 25A)
Output mode: VW/TC(Ni,Ti,SS,TCR-M1,M2,M3)
Resistance range: 0.05-1.5ohm (TC modes)
0.1-3.5ohm (VW mode)
Temperature range: 100－315℃/200－600℉(TC modes)
Weight: 77g
Output wattage: 220W
Maximum charging current: 2A
Maximum output current: 50A
Thread type: 510 thread
Battery type: high-rate 18650 battery
(Continuous discharge current should be above 25A)
Output mode: VW/TC(Ni,Ti,SS,TCR-M1,M2,M3)
Resistance range: 0.05-1.5ohm (TC modes)
0.1-3.5ohm (VW mode)
Temperature range: 100－315℃/200－600℉(TC modes)
Standard configuration:
| 1×Eleaf Invoke (without batteries) |
| 1×QC USB Cable 1×User Manual |
An Ultra Compact and Ergonomic Design
The Eleaf Invoke features elegantly crafted curves for the most stunning looking and the most comfortable feel in hand ever. With an ultra compact size, it's very easy to carry around.
The Eleaf Invoke features elegantly crafted curves for the most stunning looking and the most comfortable feel in hand ever. With an ultra compact size, it's very easy to carry around.
Larger 1.3-inch Display with Fresh Interface
The Eleaf Invoke comes with a larger 1.3-inch display that shows all essential information clearly
and concisely. Along with a fresh easy-to-go interface, it handles swiftly.
and concisely. Along with a fresh easy-to-go interface, it handles swiftly.
Limitless Vaping with Centered 510
With centered 510 pin, the Eleaf Invoke can accept tanks of various diameters. It can handle tanks up to 27mm without any overhang.
A Beast behind the Beauty
Powered by dual 18650 batteries, the Eleaf Invoke delivers a maximum power of 220 watts, allowing endless output possibilities to suit your taste. And the flip-open battery door makes replacing batteries hassle free.
Powered by dual 18650 batteries, the Eleaf Invoke delivers a maximum power of 220 watts, allowing endless output possibilities to suit your taste. And the flip-open battery door makes replacing batteries hassle free.
2A Maximum Charging Current for Quick Charge
With 2A maximum charging current, the batteries can be fully charged much more quickly.
Battery Balancing Trickle Charge System
A battery balancing trickle charge system is introduced into the Eleaf Invoke to bring two batteries to the equal level charge, which also ensures high security in charging.
Dual Circuit Protection
The circuit protection system has both software and hardware battery protections of over-charging, over-current and over-discharging.
Reverse Polarity Protection
Reverse polarity protection is fully achieved by the application of special battery anti reverse circuit in the circuit board.
Reverse Charging Capability
With the Reverse Charging (RC) adapter, the Eleaf Invoke will convert the 510 connection into a USB output for power bank mode, providing power to your cell phone or other e-cig device.
Functions of Micro USB Port
Charging: the 18650 batteries can be charged in the Eleaf Invoke through the side USB port via wall adapter or computer or charged with an external battery charger.
Firmware upgrading: the firmware can be upgraded by connecting the device with a computer through the USB port via a micro USB cable.
Download the file below to put custom logo into your Eleaf Invoke.
